CalmBlue Universal Bit
- Best for
- for speedy work needing poll and lip lift for control
- Feel
- tongue relief with sweet iron and copper roller
- Material
- Sweet Iron
- Thickness
- Narrow (10-12mm)
- Ships from
- Burlington, Ontario
- Returns
- Yes, within 30 days, used or unused
Dressage legality
- USEFNot legal
- ECNot legal
- FEINot legal
- USEANot legal
- EC EventingNot legal

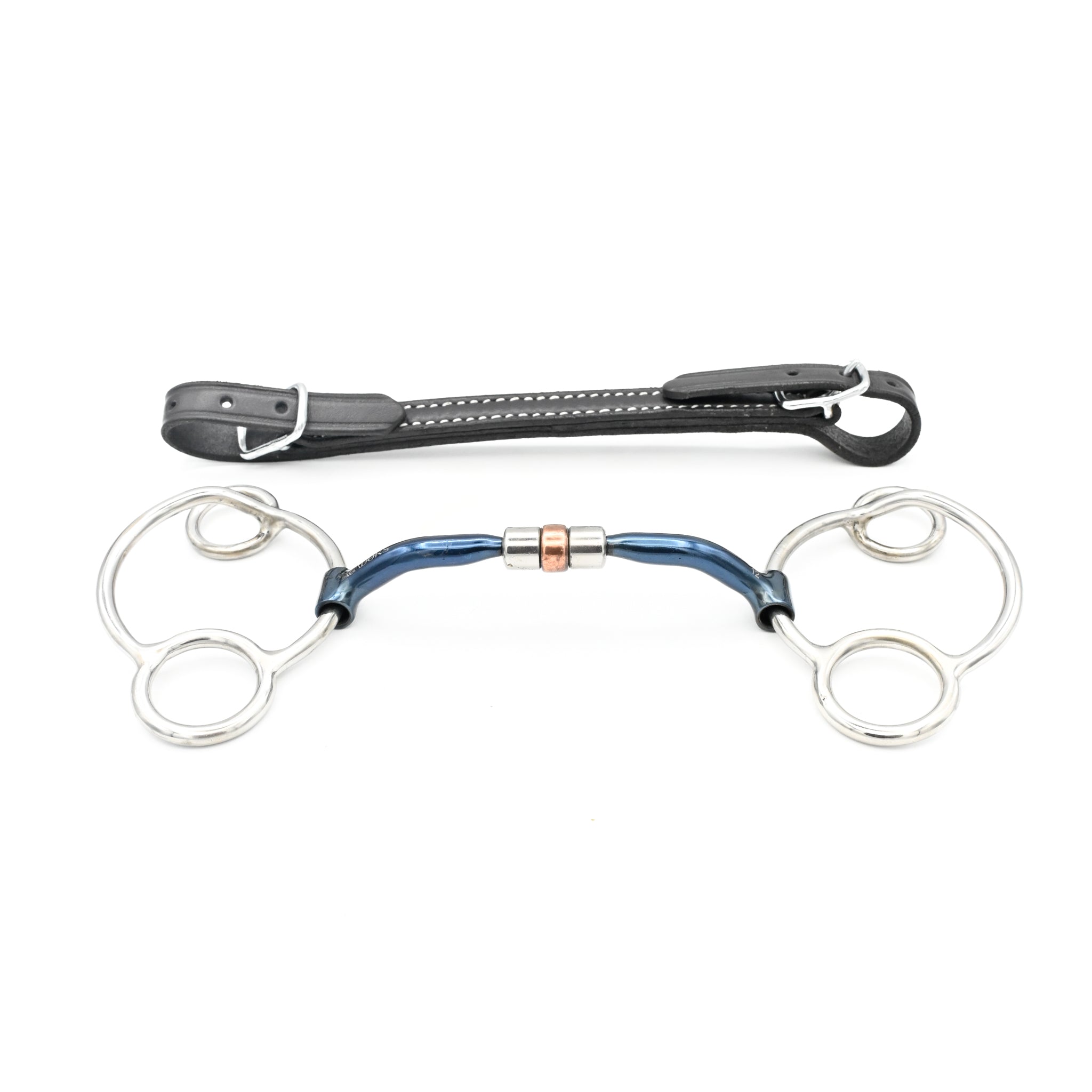

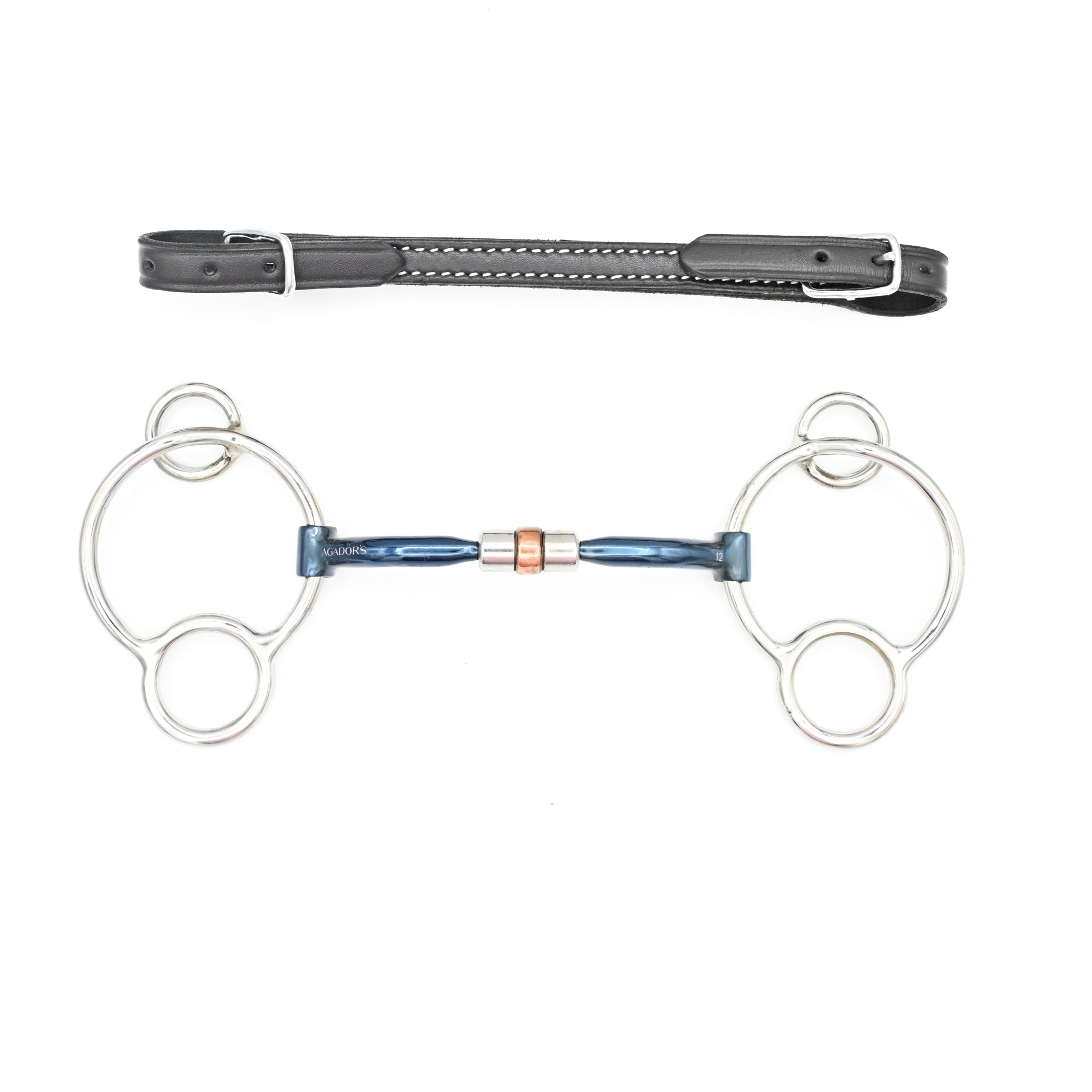

The shape, the material and the features of the CalmBlue tongue relief mouthpiece are all centered around creating acceptance, calmness and enhanced communication while minimising any unnecessary pressure.
The Calmblue mouthpiece shape encourages free movement of the tongue and redistributes pressure away from the center of the tongue that many bits with classic link designs create.
The cannons of the bit move independently to create a precision in communication between the rider and the horse.
The CalmBlue mouthpiece is made of sweet iron which releases a sweet taste as it gets in contact with saliva that many horses prefer.
The copper roller on the barrel allows the bit to glide up and down the tongue as reins are engaged more freely without creating additional pressure points.
Universal cheekpiece is a variation of the more popular elevator or Dutch gag often seen in show jumping and cross country rings. It exerts poll and lip pressure and helps lighten a strong horse that can feel heavy on the front. The detached top rings of universal stabilises the bit against the sides of the horse's face making it a more ergonomic option than the traditional Dutch gag or elevator cheekpiece.
Optional leather curb strap helps prevent over-rotation and transfers some of the pressure on the chin is included with the purchase of this bit.
Can be used on a single or double rein with or without a connector and is suitable for horses in high speed situations and advanced in their training.
Mouthpiece thickness: 10mm
Please note that sweet iron bits oxidise naturally and the blue parts will over time develop a thin layer of rust and turn brown/grey. This is by design as the "rust" is what creates the taste so many horses love.
We don't make this one in every size yet. Tell us which you need and we'll count you in. Enough riders asking is how new sizes get made.
Thank you. We've noted it. If this size launches, we'll get in touch.
That didn't go through. Please check the email address and try again.
Done. We'll email you when it's back in stock. No newsletter signup, just the one note.
That didn't go through. Please check the email address and try again.
Questions riders ask about this bit
Riders often choose this bit for:
- Horses with a thick, fleshy tongue: the slim 10mm barrel link takes up less room, and a fleshy tongue usually needs a thinner bit, not a thicker one
- Low palates
- Tongue evasions: getting the tongue over the bit or sticking it out. This is our usual first suggestion
- Head tossing linked to palate interference: the barrel link sits low and does not rotate up into the palate
- Horses that chew or grab the bit with their teeth (metal, non-ported)
Worth knowing:
- Sweet iron cannons develop a warm taste that encourages salivation and a softer connection, with a copper roller on the barrel link
- This bit will rust, and it needs to: the surface patina is what creates the warm, sweet taste. Do not submerge it in water or expose it to excessively humid or moist environments, and always wipe it dry after use to ensure longevity and function
Every horse is an individual. If you are not sure, take our two minute quiz or write to hello@agadors.com and we will help you decide.
It is the bit the brand started with. Elina developed it working through her own mare's head tossing, which in the end turned out to involve saddle fit too.
The copper roller sits on the barrel link, which encourages a horse to mouth the bit and salivate, and that tends to bring a softer jaw.
CalmBlue Dressage is the competition version: 12mm at the cheeks tapering to 10mm at the centre, with a fixed copper strip instead of a rolling one. Check your own federation for the class you are entering.
Copper adds warmth and a sweet taste exactly where the horse mouths the bit. A copper patina is normal and beneficial.
The blue is not paint or dye. Sweet iron is treated at high heat while the bit is made, which makes it react with oxygen and form an oxide layer, and that layer is blue. As you ride, it oxidises further and turns brownish grey. Eventually the blue areas lose their colour completely. Every stage of that is normal and the bit is safe throughout.
We use sweet iron because the patina tastes warm and slightly sweet, which encourages a horse to salivate and soften. Trust the rust.
Every sweet iron bit on the market does this, whoever makes it. If it is not what you expected, a metal bit that is not final sale can come back within 30 days.
Do not soak it and do not leave it to air dry. If it gets properly wet, dry it fully and put a thin layer of food-safe oil, canola or flax, on the hinges and barrel. Store it somewhere dry with air moving around it. Rough patches can be smoothed with superfine wet-and-dry sandpaper.
Frequent soaking or washing lets rust build up inside the hinge, which fills the space the joint needs to move. Humid storage does the same thing slowly.
To free it up, dry it thoroughly, work a little food-safe oil into the hinge and move it back and forth. Then switch to wiping dry after rides instead of washing.
If it is properly seized, send us a short video. If a hinge left the workshop too tight, that is ours to fix and we will replace it.
What size do I need?
Bit size is the width of the mouthpiece. We list inches. Some bits are stamped in centimetres, so a bit marked 13.5 is 13.5cm, which is our 5.5".
Measure your horse rather than going by their height. A 17hh horse can have a 5" mouth. If you already have a bit that fits well, measure that instead and match it.
Fixed cheek (eggbutt, Baucher, D-ring, full cheek): about 0.5cm of clearance each side. Loose ring: up to 1/8" between the corner of the lip and the bore hole each side. If you ride in bit guards, or your horse has fleshy lips that catch, order a quarter inch up from your fixed-cheek size.
Too wide slides side to side and can pinch the corners. Too narrow presses on the lips. If your current bit fits with no room at all, stay at that size. If it "just" fits, go up a quarter inch.
Send us a photo of your horse in their current bit and we will tell you what we see.
Can I return it if it does not suit my horse?
Most of our metal bits, yes, within 30 days, for a refund or an exchange, and we do take them back used. That is the point of the 30 days: a bit you have not ridden in tells you nothing.
What happens to it then is that we resell it as a Demo unit, clearly labelled and priced lower, rather than as new. That is also where the demo units on this site come from.
Three things cannot come back: rubber mouthpieces, Final Sale items, and Demo condition bits. Rubber because it cannot be brought back to a saleable state, and the other two because they have already been through this once. All three are marked in the product title and description.
You can add return coverage at checkout, which gets you a free return label. If you skip it you can still use the returns portal, and the label cost comes off your refund.
We do not run a trial or loaner program.
How do I know if this is right for my horse?
Ask us. We would rather look at your horse than have you guess.
Useful things to tell us: what they go in now and what is not working, your discipline and whether it needs to be competition legal, the size, and what their mouth looks like inside. Peel the lip back and look at the tongue. Is it fleshy and full, or thin and tucked? Is the palate low? Are the bars sharp to the touch?
A photo of your horse wearing their current bit tells us more than a paragraph.
One thing worth saying up front: the bit is one variable. Saddle fit, dental work, noseband tightness and rider hands cause a lot of what gets blamed on bits. If your horse has changed suddenly, get the teeth and the saddle checked before you change the bit.
Does mouthpiece thickness matter?
Our range runs 10mm to 16mm. For reference, 10mm is narrow, 12mm narrow to medium, 14mm average, and 16mm wide. 14mm is an ordinary thickness in the bit world, not a thick bit.
The counterintuitive part: a horse with a big fleshy tongue usually wants a thinner mouthpiece, not a thicker one. The average horse has around 16mm of space from tongue to palate, so anything over about 14mm starts competing with the tongue for room. More material in a mouth that is already full makes things worse.
Which way up does it go?
Lay the bit flat on a table. The roller or centre link should sit as the highest point. The Agador's lettering and the size should read upright, and the "A" points toward the nostrils.
Our logo placement is not perfectly consistent across the range, because where it lands depends on the bore hole the cheekpiece rings pass through, and some bits work either way up. If it looks odd, send a photo and we will confirm rather than have you guess.
When will my size be back in stock?
A restock is usually 4 to 8 weeks. Canada tends to land first and the US follows about 2 to 3 weeks later, so if you are in the US and it shows in stock for Canada, ask us. We can often ship one across the border, which adds roughly $10 in duties.
Sign up for the restock alert on this page and you will hear the moment your size lands.
Two honest caveats. Some cheekpieces get discontinued and will not return, and we will tell you plainly if yours is one of them. And sizes 6.5" and up are not something we stock regularly, because the orders are too few to justify holding them.
Can I get a custom one made?
Not right now. We have stopped taking new custom bit orders and we are not quoting turnarounds or a relaunch date.
If what you are after is close to something we already make, tell us the spec and we will find you the nearest match in stock.
Still deciding? See how this compares with similar bits.
